This article introduces Radiant, a binary-level concolic execution framework for Solana programs.

Introduction

Radiant is an advanced testing framework for Solana programs that leverages concolic execution, a hybrid approach combining concrete and symbolic execution.

Radiant models program input fields and account states as either concrete values or symbolic variables. Given a target code location, it uses symbolic execution to determine which input values enable execution paths that reach that location.

Motivation

Security auditors combine multiple techniques when analyzing smart contracts, ranging from manual code review to understand program logic, fuzzing to systematically test the code base, and formal verification for critical properties. Each technique has distinct strengths. Manual review leverages human insight and reasoning, fuzzing explores behavior empirically while formal methods provide mathematical rigor.

Radiant augments this toolkit with concolic execution, a technique that combines concrete execution with symbolic execution. But why concolic execution instead of purely symbolic execution?

Solana's architecture presents a unique challenge, programs are stateless and operate on accounts passed as input. A transaction can include dozens of accounts, each with arbitrary data and state. Making everything symbolic, can quickly become impractical. The high number of symbolic variables can overwhelm the constraint solver, and make analysis intractable.

Radiant's concolic approach solves this by starting with a concrete execution context representing a deployment with actual account data, balances, and program state. From this concrete baseline, one can selectively mark specific values as symbolic. Perhaps just the instruction parameters, or specific fields within an account's data. This selective symbolization keeps the analysis focused and tractable while still enabling targeted path exploration.

This approach is particularly powerful when combined with fuzzing. Fuzzers excel at exploring the program state space at scale but struggle to reach deep nested code paths fenced by conditional statements. Radiant addresses this by solving constraints on the symbolized values to generate precise inputs that reach specific code locations.

How it works

Understanding Radiant's approach requires first recognizing the limitations of traditional testing methods. Consider a typical testing scenario applied to given Solana program:

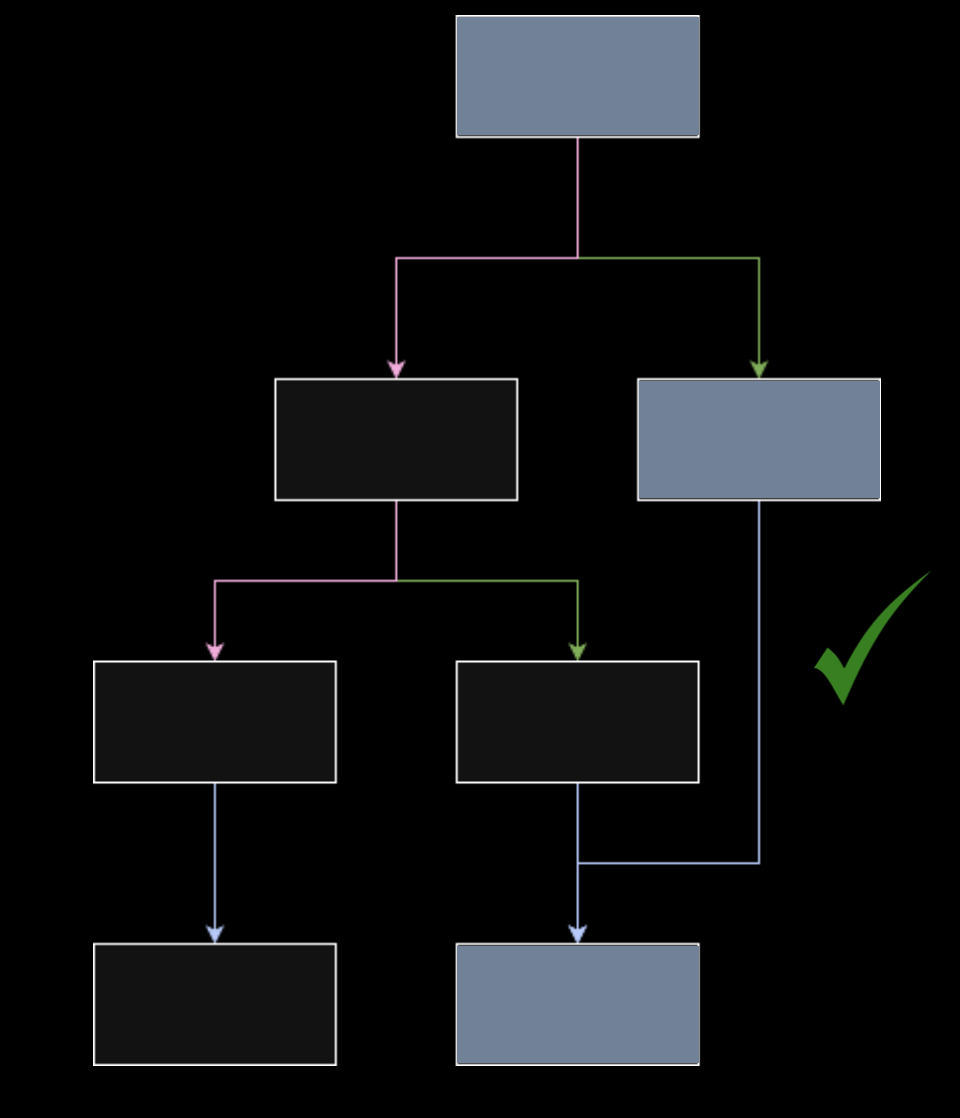

Control flow graph showing execution paths

The control flow graph (CFG) above shows the execution paths taken when running different tests. Each test explores certain branches and basic blocks within a given program's logic.

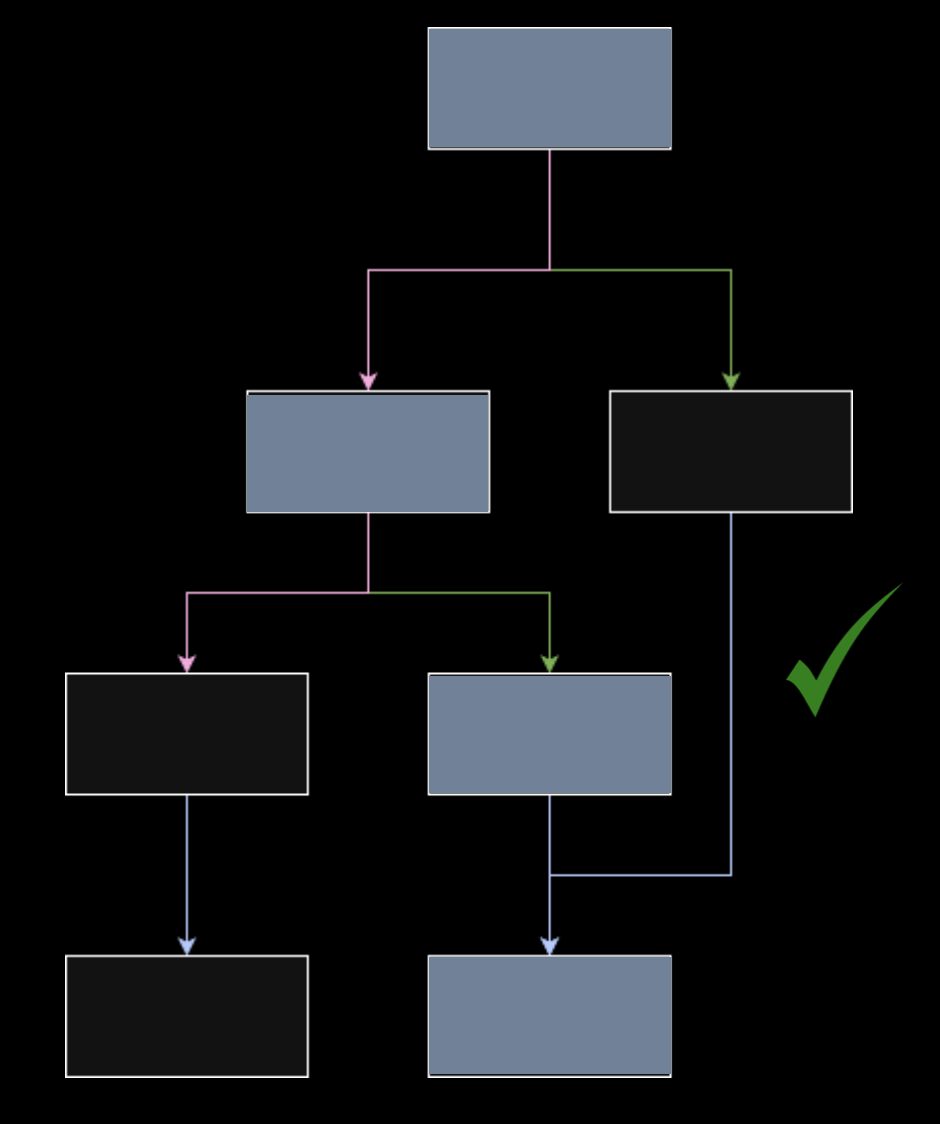

Multiple tests increasing code coverage

While multiple tests increase code coverage, they still follow predictable paths determined by the specific test inputs. This approach often misses edge cases that lurk in unexplored execution paths.

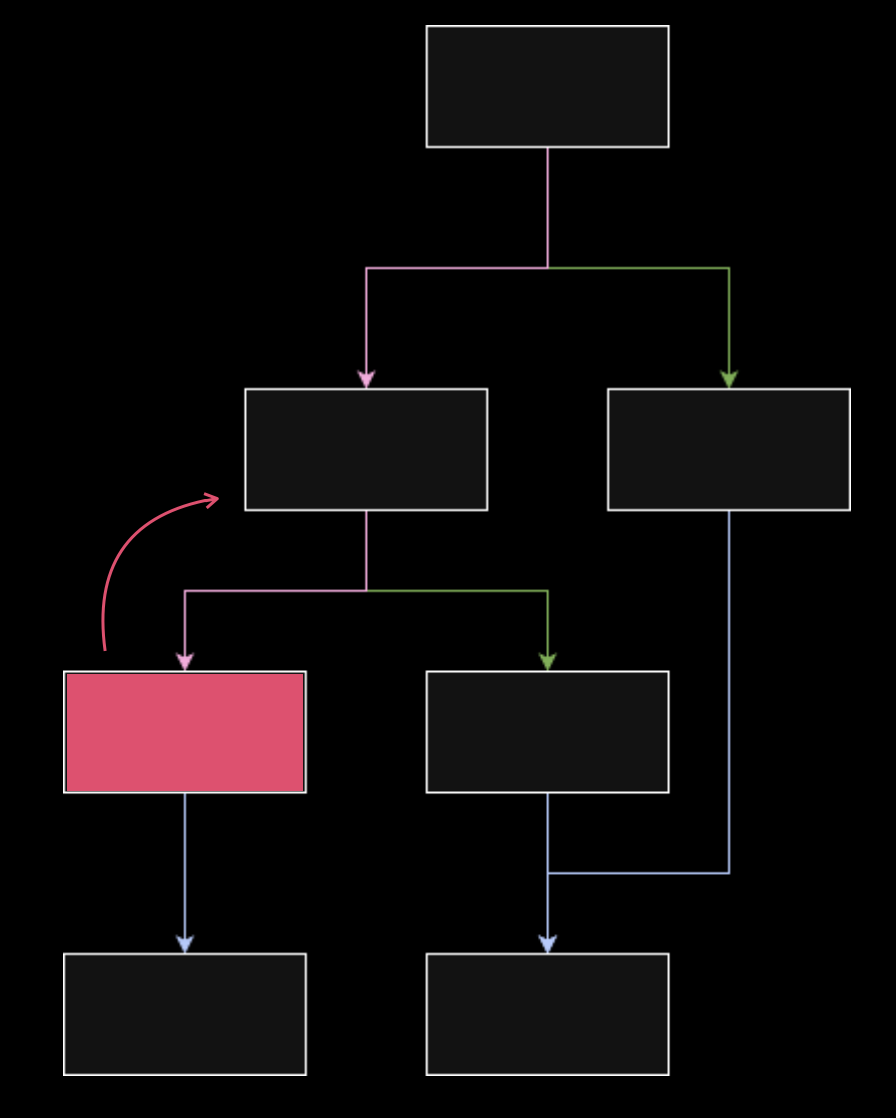

Bug manifesting in a specific basic block

Consider a scenario where a bug manifests in a specific basic block due to miscalculations caused by a previous block due to unexpected state changes.

Targeted Symbolic Execution

Radiant addresses this by enabling targeted basic block exploration. Following a bottom-up approach, instead of hoping random inputs will stumble upon problematic code paths, Radiant can explicitly target specific basic blocks to reach.

Target basic blocks can be selected through multiple approaches:

Once a target basic block is selected, Radiant performs symbolic execution to discover the conditions needed to reach it:

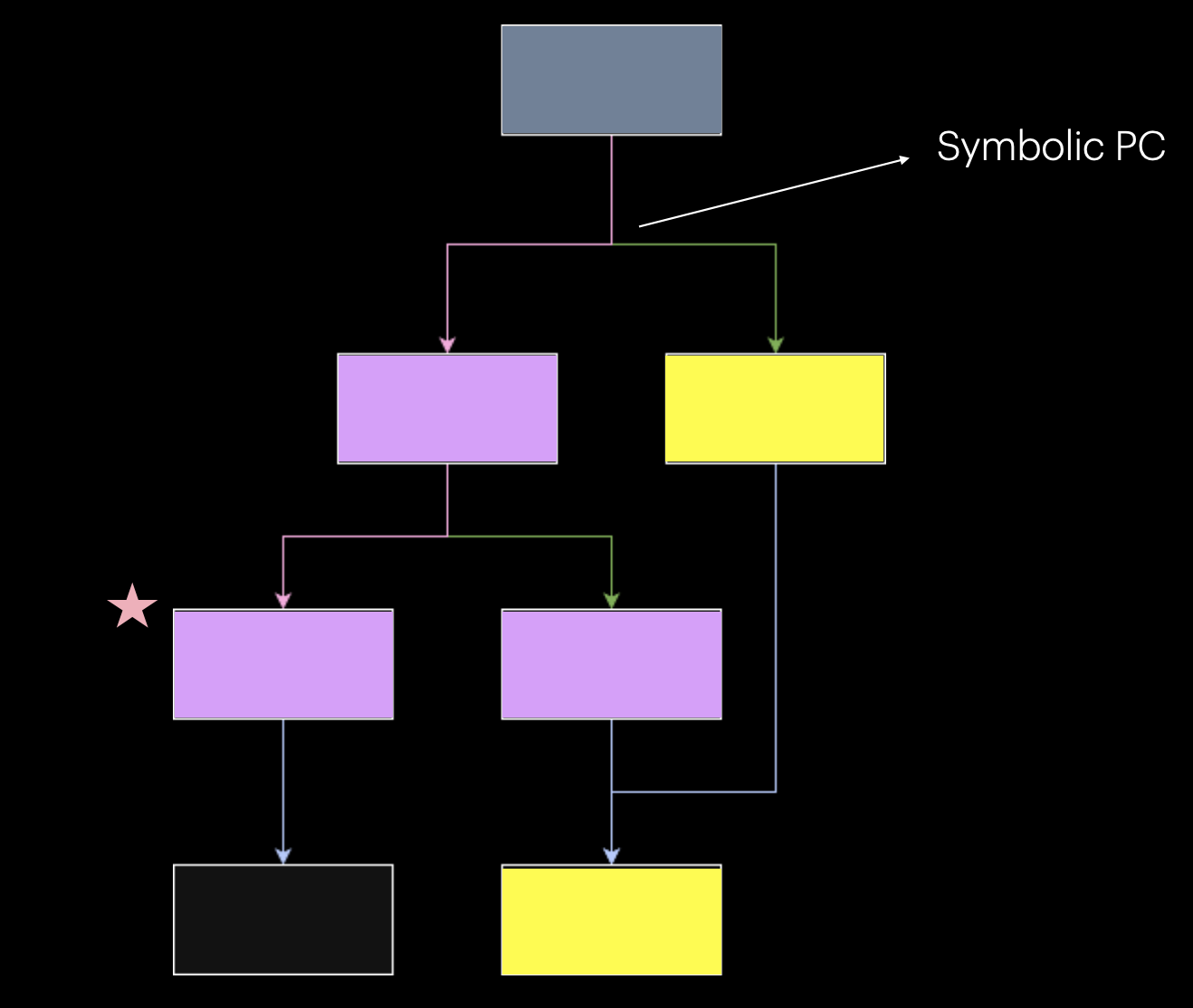

Symbolic execution targeting a basic block
  1. Symbolic Variable Introduction: Radiant treats selected input fields and account states as symbolic variables rather than concrete values
  2. Path Exploration: As execution progresses, whenever a symbolic program counter (PC) is encountered, typically a branch instruction representing a conditional statement that depends on symbolic variables, the control flow diverges
  3. Parallel Path Analysis: Each divergent path is explored symbolically in parallel, building path constraints that capture the conditions required to reach each branch
  4. Target Achievement: When the symbolic execution reaches the target basic block, Radiant has accumulated all the path constraints necessary to reach that code
  5. Concretization: Finally, Radiant solves these constraints and concretizes the symbolic values, producing concrete input values that will deterministically trigger the target basic block

This is fundamentally how binary-level symbolic execution frameworks like angr and Manticore operate on traditional binaries.

These tools enable security researchers and developers to analyze complex execution paths, and generate concrete inputs that trigger specific code paths.

Architecture

Radiant's architecture consists of two parallel execution engines coordinated through a debugger bridge:

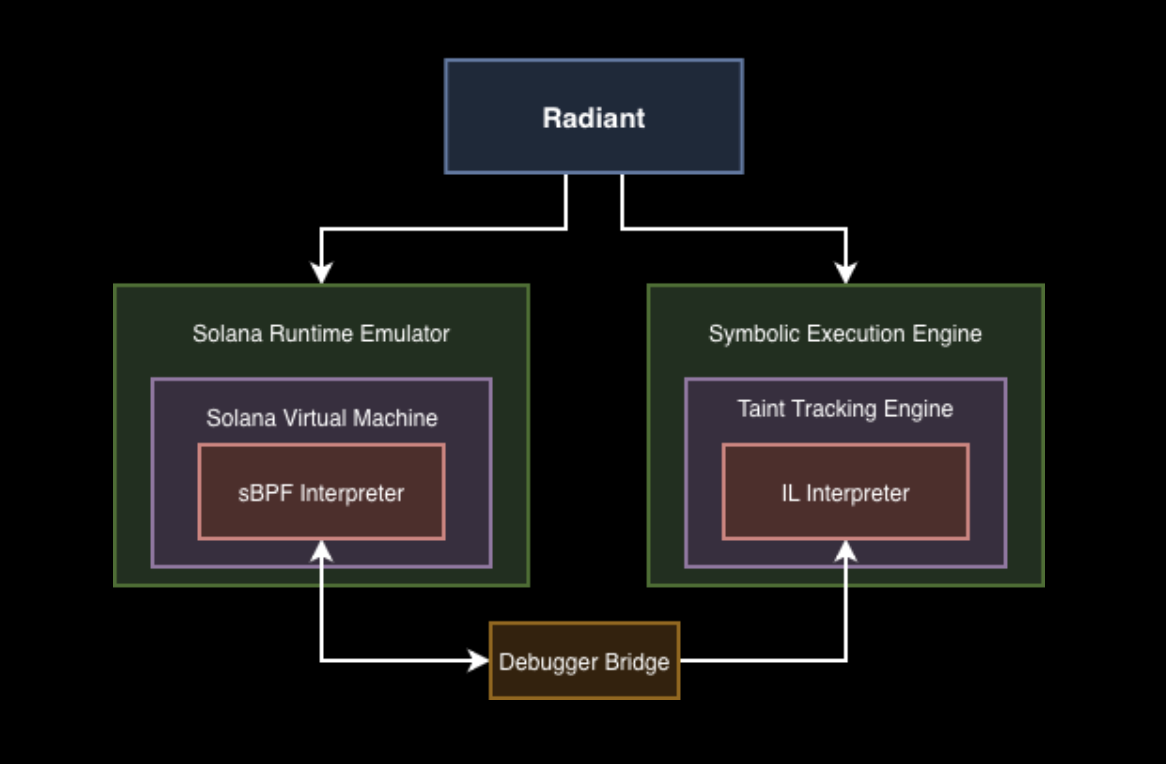

Radiant architecture diagram

Solana Runtime Emulator

The left side of the architecture provides concrete execution through the Solana Runtime Emulator. Radiant leverages LiteSVM, a lightweight Solana Virtual Machine that executes programs in their native sBPF bytecode format. This component runs actual program instructions with concrete values while maintaining accurate runtime state, including account data, instruction context, and program execution flow.

Symbolic Execution Engine

The right side contains the Symbolic Execution Engine, built around a Taint Tracking Engine. This engine includes an IL Interpreter that operates on a lifted representation of the program.

Radiant is built on top of a modified version of radius2, a powerful symbolic execution framework that leverages radare2's ESIL as its intermediate language.

This work builds directly on our sBPF architecture contributions to radare2, which we developed specifically to enable advanced binary analysis for Solana programs. We presented this work at r2con 2025, showcasing the process of implementing sBPF support in radare2.

Debugger Bridge

The Debugger Bridge serves as the coordination layer between both engines, implemented through a GDB stub server integrated into a modified version of solana-sbpf. This implementation enables standard GDB Remote Serial Protocol communication between the Solana VM and the symbolic execution engine.

The bridge operates using a two-stage architecture:

Through the GDB protocol, Radiant can:

This dual-engine architecture enables concolic execution. The modified solana-sbpf runtime provides program and transaction concrete context through its GDB interface, while radare2 extracts this context and radius2 leverages it to build symbolic constraints necessary for path exploration.

Architecture detail diagram

Ideally, symbolic execution would leverage compiler-based intermediate representations like LLVM IR, which provide well-defined semantics and strong tooling support. However, existing LLVM-based symbolic execution frameworks lack mature support for sBPF's ISA and SIMD extensions. Rather than building sBPF support from scratch in an LLVM-based framework, we chose to use ESIL from radare2, which already had the foundation for sBPF analysis through our prior contributions.

This choice required validation. We needed to ensure our ESIL instruction models accurately represent sBPF semantics. To achieve this, we leveraged the debugger bridge to implement a differential fuzzer that compared execution traces between the ESIL interpreter and live debugger sessions.

Differential fuzzer diagram

By fuzzing instructions and comparing their effects on registers and memory in both environments, we were able to validate with a reasonable degree of confidence, that our ESIL models correctly capture sBPF semantics, providing higher confidence in the symbolic execution results despite not using a compiler IR.

Example Walkthrough

Let's demonstrate Radiant with a practical example: discovering the exact input values that trigger a panic condition in a Solana program.

Note: This example uses a simplified program to clearly illustrate Radiant's symbolic execution capabilities. Real-world Solana programs involve significantly more complex logic, but the same methodology applies.

The Target Program

Consider the following Solana program:

#[program]
pub mod hello_world {
    use super::*;

    pub fn initialize_fn(ctx: Context<InitializeContext>, input: u8) -> Result<()> {
        msg!(
            "Hello World address: {}",
            ctx.accounts.hello_world_account.key()
        );
        let hello_world_store = &mut ctx.accounts.hello_world_account;
        hello_world_store.input = input;

        if input > 200 && input < 210 {
            panic!("This number is magic")
        }

        Ok(())
    }
}

The program accepts a u8 input parameter and panics only when the value falls within the narrow range of 201-209.

Understanding snapshot_pc and target_pc

Before running Radiant, we need to identify two critical program counter locations:

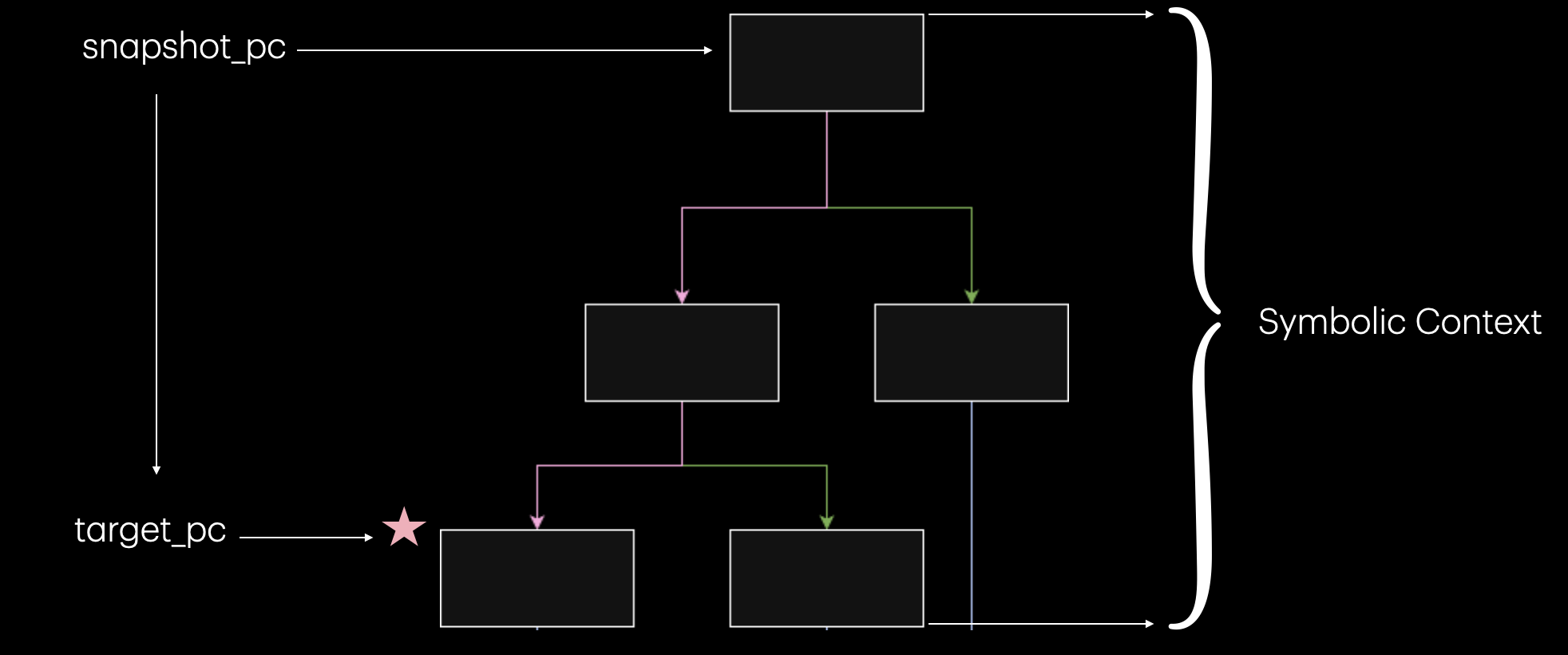

snapshot_pc and target_pc locations

Note: If snapshot_pc is set to 0, Radiant will automatically populate this to the instruction function entry point or program entry point.

Radiant Test Configuration

The test setup involves two main components:

1. Radiant Test Configuration (tests/test.rs):

use radiant_test::*;
use std::collections::HashSet;
use crate::setup::*;

#[test]
fn test_example() -> Result<()> {
    let snapshot_pc = 0x100007018;
    let target_pc = 0x1000078d8;

    let (config, deployment_thread) = setup::config(
        snapshot_pc,
        target_pc,
        20,
        true,
        false
    );

    let mut test = RadiantTest::new(config)?;

    let result = test.run(SymbolizeSpec::InstructionData {
        length: 1
    })?;

    let solutions = result.into_bytes();

    println!("\n[+] Found {} solutions", solutions.len());

    for (i, sol) in solutions.iter().enumerate() {
        let value = sol[0];
        println!("   Solution #{}: {} (0x{:02x})", i + 1, value, value);

        assert!(value > 200 && value < 210,
            "Solution {} is outside valid range (201-209)", value);
    }

    Ok(())
}

2. Program Deployment (src/deployment.rs):

pub fn call_initialize_fn(&mut self, input: u8) -> Result<()> {
    println!("\n[*] Calling initialize_fn...");

    let (hello_world_account_pda, _bump) = self.deployed.find_pda(&[b"hello_world_seed"]);

    let mut data = vec![0x12, 0xbb, 0xa9, 0xd5, 0x5e, 0xb4, 0x56, 0x98];
    data.push(0u8);

    let instruction = Instruction {
        program_id: self.deployed.program_id,
        accounts: vec![
            AccountMeta::new(self.deployed.payer_pubkey(), true),
            AccountMeta::new(hello_world_account_pda, false),
            AccountMeta::new_readonly(system_program::ID, false),
        ],
        data,
    };

    let recent_blockhash = self.deployed.svm.inner.latest_blockhash();
    let message = Message::new(&[instruction], Some(&self.deployed.payer_pubkey()));
    let tx = Transaction::new(&[&self.deployed.payer], message, recent_blockhash);

    self.deployed.enable_debug();

    match self.deployed.svm.inner.send_transaction(tx) {
        Ok(result) => {
            println!("[+] initialize_fn successful!");
            for log in &result.logs {
                println!("   {}", log);
            }
            Ok(())
        }
        Err(e) => Err(anyhow::anyhow!("initialize_fn failed: {:?}", e)),
    }
}

Binary Analysis with radare2

Finding the correct snapshot_pc and target_pc values requires binary-level analysis. We extended radare2 to support sBPF architecture:

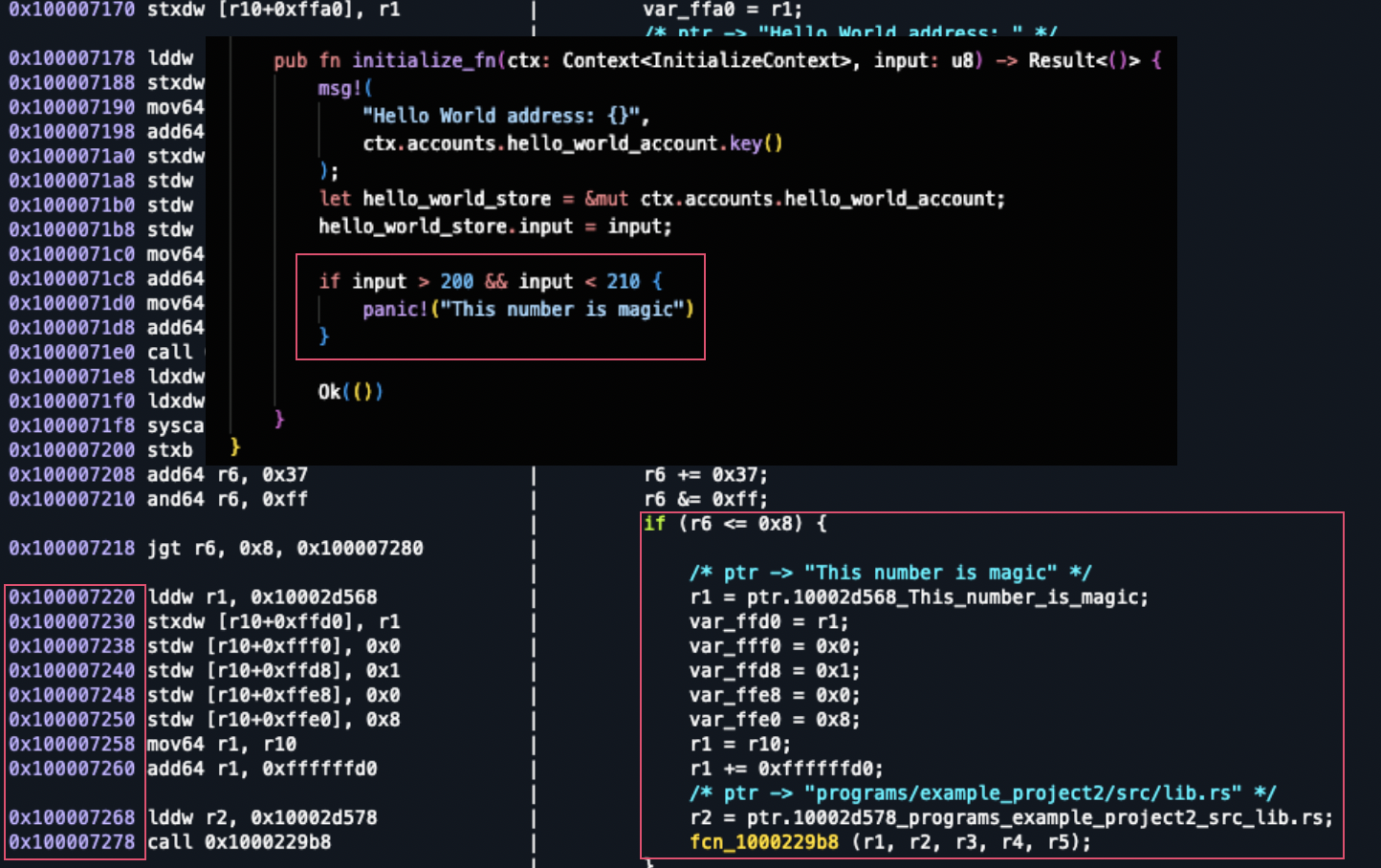

radare2 sBPF disassembly

The screenshot demonstrates:

Demo

Radiant demo

The demo above shows Radiant discovering all input values in the range 201-209 that trigger the panic condition.

Results

When executed, Radiant outputs:

[+] Found 9 solutions
   Solution #1: 201 (0xc9)
   Solution #2: 202 (0xca)
   Solution #3: 203 (0xcb)
   Solution #4: 204 (0xcc)
   Solution #5: 205 (0xcd)
   Solution #6: 206 (0xce)
   Solution #7: 207 (0xcf)
   Solution #8: 208 (0xd0)
   Solution #9: 209 (0xd1)

Radiant has systematically identified all nine values that satisfy the constraint.

Cross-CPI Concolic Execution

One of Radiant's advanced capabilities is cross-program invocation (CPI) concolic execution.

Note: The following example uses a simplified two-program interaction to demonstrate the cross-CPI technique.

Targeting Code Reachable Only via CPI

Consider a scenario where your target basic block exists in a callee program but can only be reached through a caller program's CPI invocation:

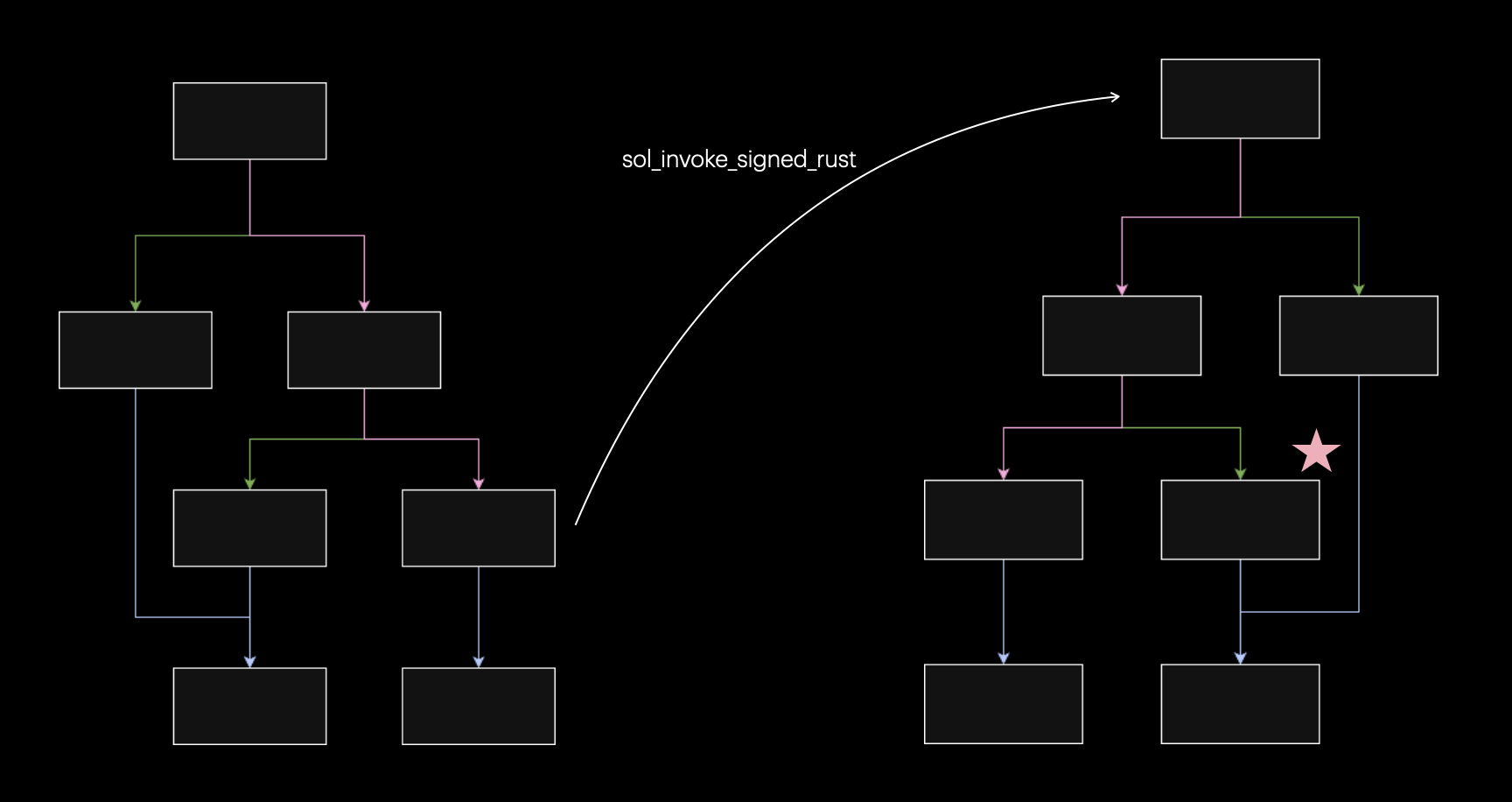

Cross-CPI target scenario

Example

Callee Program (cpi_callee):

#[program]
pub mod cpi_callee {
    use super::*;

    pub fn increment(ctx: Context<Modify>, amount: u64) -> Result<()> {
        let counter = &mut ctx.accounts.counter;

        require!(
            counter.authority == ctx.accounts.authority.key(),
            ErrorCode::Unauthorized
        );

        if amount >= 660 && amount < 666 {
            panic!("TARGET REACHED: amount falls in bounds");
        }

        if amount >= 666 && amount < 700 {
            panic!("TARGET REACHED: amount falls in bounds 2");
        }

        counter.count = counter.count.checked_add(amount)
            .ok_or(ErrorCode::Overflow)?;
        counter.operation_count += 1;

        msg!("Counter incremented by {}. New value: {}", amount, counter.count);
        Ok(())
    }
}

Caller Program (cpi_caller):

#[program]
pub mod cpi_caller {
    use super::*;

    pub fn cpi_increment_counter(
        ctx: Context<CpiModifyCounter>,
        amount: u64,
    ) -> Result<()> {
        let transformed_amount = amount.checked_add(123).unwrap();

        let cpi_program = ctx.accounts.callee_program.to_account_info();
        let cpi_accounts = cpi_callee::cpi::accounts::Modify {
            authority: ctx.accounts.authority.to_account_info(),
            counter: ctx.accounts.counter.to_account_info(),
        };
        let cpi_ctx = CpiContext::new(cpi_program, cpi_accounts);

        cpi_callee::cpi::increment(cpi_ctx, transformed_amount)?;
        Ok(())
    }
}

Radiant's Cross-CPI Solution

Cross-CPI solution diagram

Radiant's cross-CPI concolic execution works by tracking symbolic values across program boundaries:

  1. Symbolic Value Propagation: When symbolic execution reaches a CPI invocation point in the caller, Radiant identifies the symbolic variables being passed as arguments.
  2. CPI Boundary Translation: At the sol_invoke_signed_* boundary, Radiant translates the symbolic values from the caller's context into the callee's execution context.
  3. Callee Exploration: Symbolic execution continues in the callee program.
  4. Constraint Propagation: When the target basic block is reached, constraints are propagated backward through the CPI boundary.
  5. Unified Constraint Solving: The constraint solver evaluates combined constraints from both programs.

Implementation

Cross-CPI implementation diagram

Both programs are deployed in the same LiteSVM instance. When the caller VM executes, a GDB server starts on port 9999. During symbolic execution, when radius2 detects the CPI syscall, a second VM instance is spawned for the callee with its own GDB server on port 10000.

Cross-CPI Test Configuration

#[test]
fn test_cross_cpi() -> Result<()> {
    let ((caller_program_path, callee_program_path), deployment_thread) =
        setup::setup_deployment();

    let config = RadiantTestConfig::new(caller_program_path)
       .cross_cpi_state(
            0x100007ae0,
            Some(0x100007d90),
            0x100007c88,
            0x100008bf8,
        )
        .callee_avoid(vec![])
        .max_solutions(20)
        .verbose(true);

    let mut test = RadiantTest::new(config)?;
    let result = test.run(SymbolizeSpec::InstructionData { length: 8 })?;
    let solutions = result.into_bytes();

    println!("\n[CROSS CPI] Found {} solutions", solutions.len());

    for (i, sol) in solutions.iter().enumerate() {
        if sol.len() >= 8 {
            let amount = u64::from_le_bytes(sol[0..8].try_into().unwrap());
            println!("  Solution #{}: amount = {} (0x{:x})", i + 1, amount, amount);
            assert!(amount + 123 >= 666 && amount + 123 < 700,
                "Callee solution {} is not in [666, 700)", amount);
        }
    }

    Ok(())
}

Cross-CPI Results

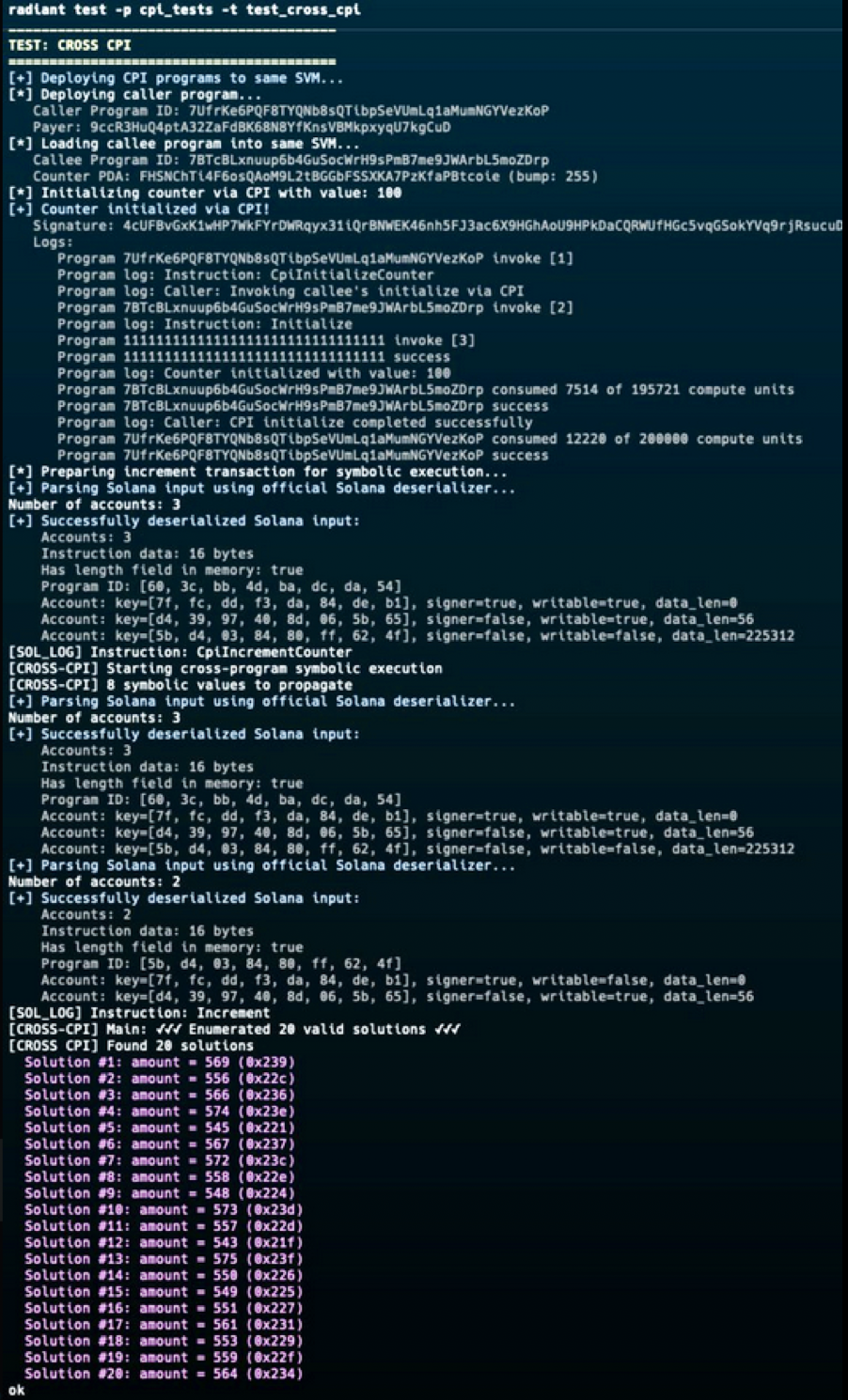

Cross-CPI results

The output shows the complete cross-CPI analysis. The solutions include values like:

Additional Capabilities

Conclusion

Radiant brings concolic execution to Solana program security testing. By combining concrete and symbolic execution through its dual-engine architecture.

The framework's capabilities, from targeted basic block exploration to cross-CPI symbolic execution, address the unique challenges of analyzing composable Solana programs symbolically.

As Solana's ecosystem continues to grow in complexity, with protocols increasingly relying on multi-program interactions and intricate state machines, tools like Radiant become relevant for security research.

We're continuing to develop and refine Radiant, and we look forward to open-sourcing it in the future.
